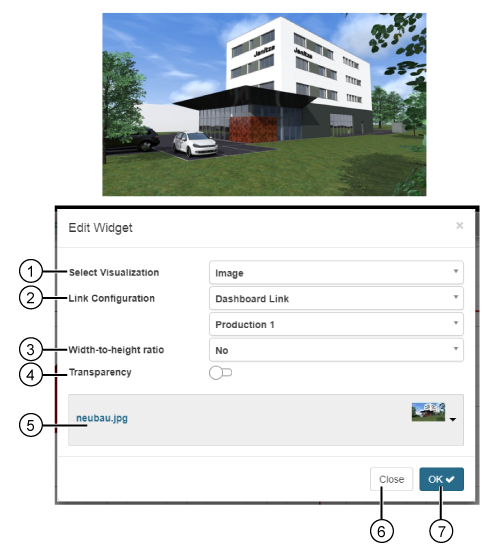

| Position | Description |
|---|
| 1 | - Selection of the Widget (of the visualization).
- Image selected.
|
| 2 | Choose between 3 entries: - No linking
- Dashboard link with the option list Dashboard:
Single-click on the image and the browser view to switch to the selected Dashboard. - External link with the entry field url (website address, e.g. http://www.janitza.de):
Single-click on the image and the browser view to switch to the entered website address.
|
| 3 | - Yes:
Image fills the frame proportionally - Aspect ratio maintained. - No:
Image fills the frame - Aspect ratio is distorted.
|
| 4 | - For empty frames, e.g. to subsequently link other widgets (visualizations).
|
| 5 | - Selection of images from Image Management.
- Allowed image formats: jpg. png, gif, svg.
|
| 6 | - Closes the assistant Edit Widget without saving what you have entered.
|
| 7 | - Saves your configuration.
- The Widget appears on the Dashboard.
|
